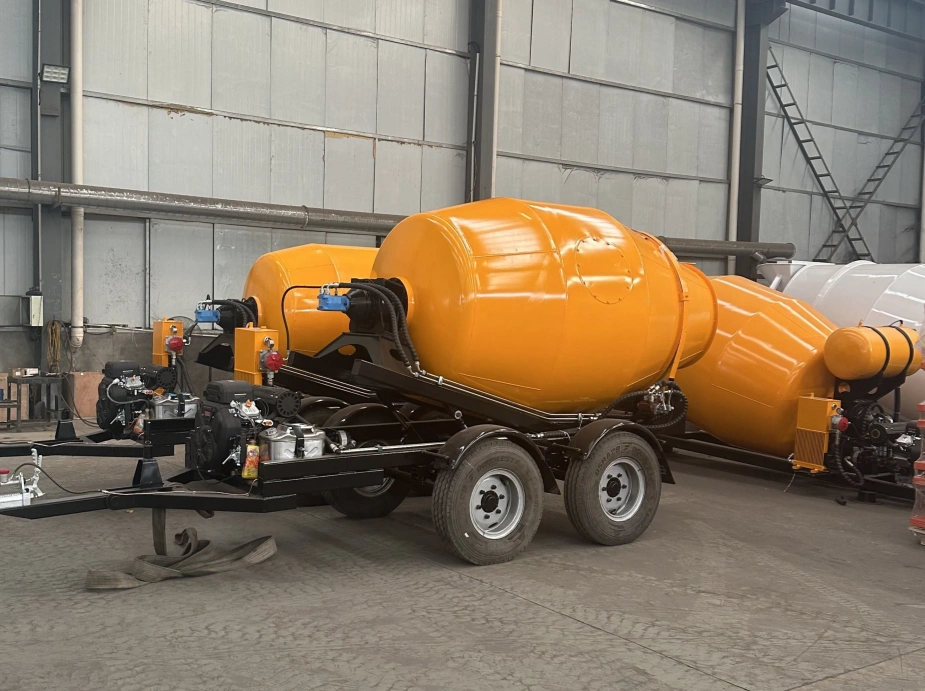

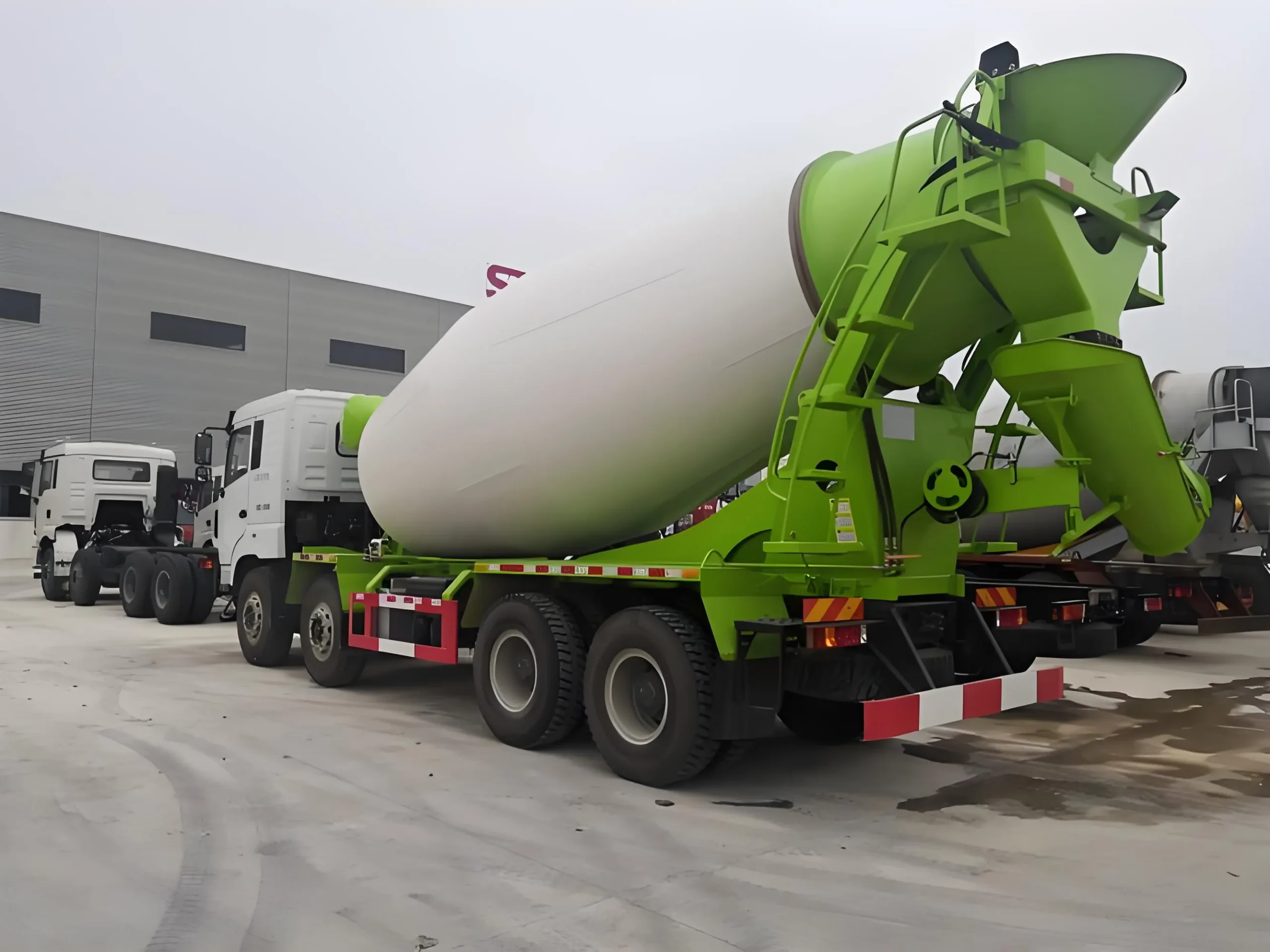

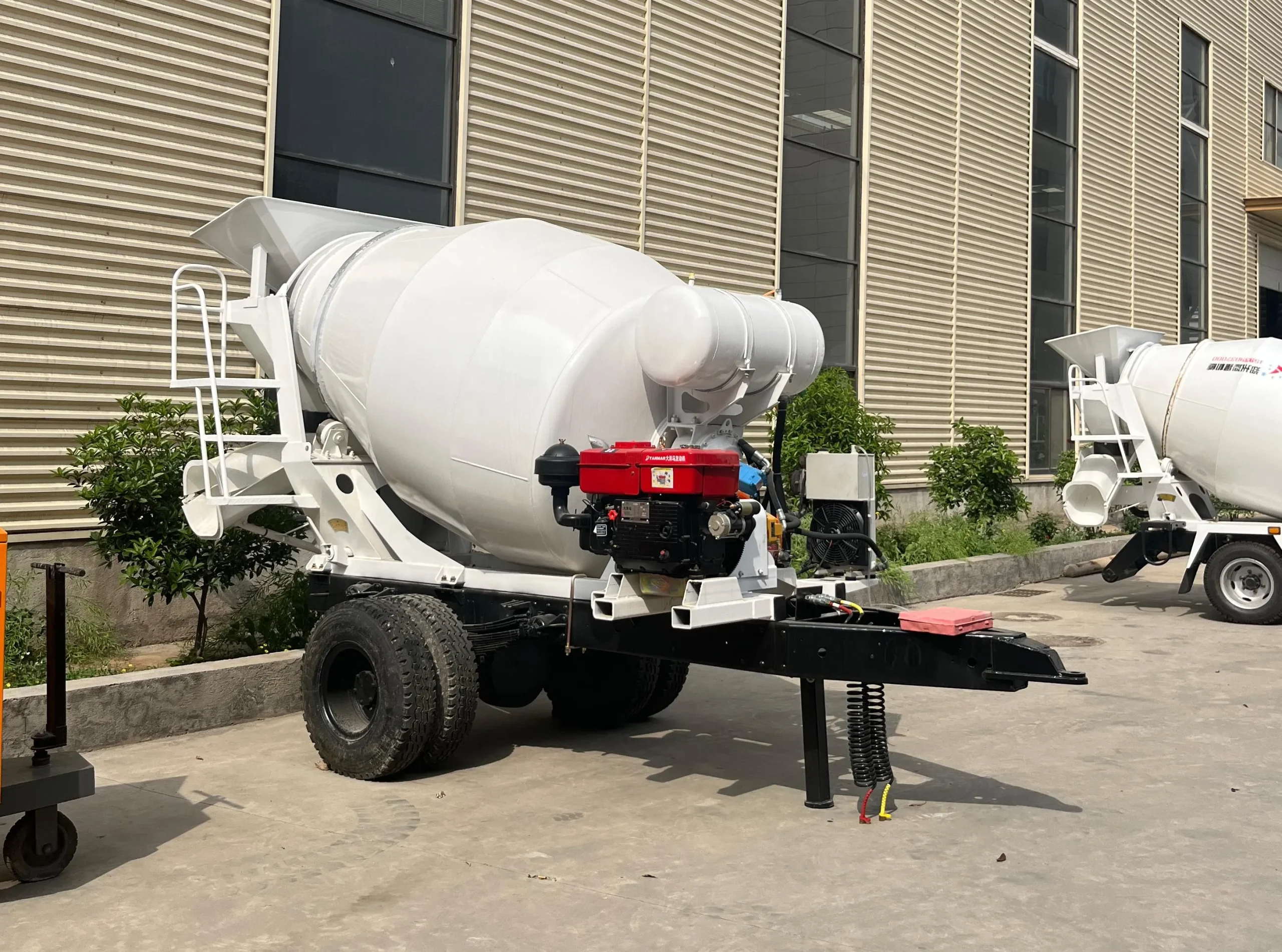

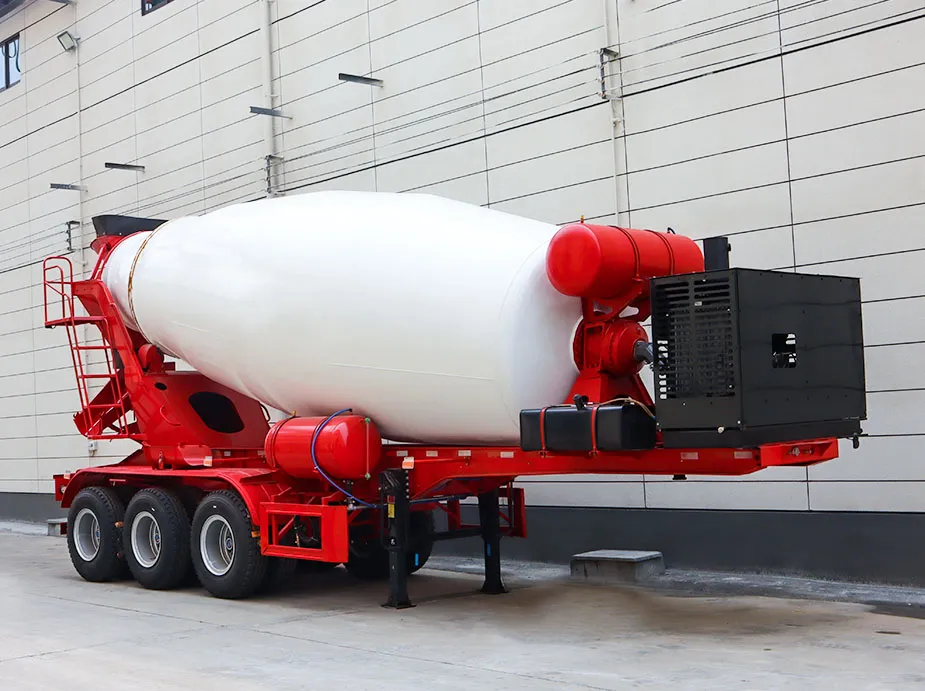

We are a leading manufacturer of high-quality diesel trailer mixer tanks, concrete mixer trucks and mixing plants. We specialize in custom solutions and offer a wide range of models with capacities from 1.5 to 25 cubic meters.
Zhengzhou Manxing Machinery
About Us
With 20 years of expertise, we are dedicated to being your trusted supplier of high-quality diesel trailer mixers, concrete mixer trucks, and batching plants.
Zhengzhou Manxing Machinery Equipment Co., Ltd. is a leading manufacturer of high-quality diesel trailer mixing tanks, concrete mixer trucks, concrete mixer trucks, and concrete batching plants. We specialize in the production and customization of various models with capacities including 1.5m³, 5m³, 7m³, 10m³, 12m³, 16m³, 18m³, 20m³, and 25m³.
We provide efficient and reliable mixing solutions for construction and industrial applications. With years of expertise and commitment to excellence, we provide innovative, cost-effective, customized solutions to meet the needs of our customers worldwide.
Our mixing tanks are ideal for a wide variety of applications, including large-scale infrastructure projects, road construction, high-rise building developments, and urban construction sites with limited space. Whether you’re working on high-demand commercial buildings or small-scale residential projects, our tanks provide the perfect solution for on-site concrete mixing, ensuring maximum efficiency and minimal downtime. With advanced hydraulic systems and automated welding techniques, our tanks are engineered for maximum reliability and safety.
Product Video
product
Description
Parameters
| Typology | 1m3 | 1.5m3 | 2m3 | 2.5m3 |
| Geometric volume | 1.5m3 | 2.4m3 | 3.6m3 | 4.5m3 |
| Cylinder Diameter | 1.6m | 1.6m | 1.6m | 1.6m |
| Helix angle | 13° | 13° | 15° | 15° |
| Propulsion | 28HP | 28HP | 32HP | 32HP |
| Weights | 2300kg | 2800kg | 2800kg | 2800kg |
| Overall dimensions（mm） | 5000×1600×2400 | 5000×1600×2400 | 5000×1600×2400 | 5000×1950×2600 |
| Material | AJ620JJ high-strength wear-resistant manganese steel (special wear-resistant material-improve the service life of the tank body by more than 3 times) | |||
| Craft | Tooling splicing, automatic welding of circular seam and longitudinal seam, shot blasting and anti-rust treatment, sand blasting and polishing | |||
| Hydraulic system | Manxing specific hydraulic system, quality assurance, worry-free after-sales | |||
| Remark | The configuration table is for reference, subject to the actual order configuration. The above data are measured manually, and the error of ≈ 10 cm is within the normal range. | |||
| Chassis section | Serial number | Name | Models |
| 1 | The engine | R4108ZLD，75KW | |
| 2 | Tire type | 1100R20 | |
| 3 | Number of tyres | 12 of the project | |
| 4 | Back Bridge | 16T | |
| 5 | Brake system | Yes | |
| 6 | Tire Shields | Yes | |
| The tank body part | Serial number | Name | Models |
| 1 | Volume | 18m³ | |
| 2 | Material of tank | BW300 wear-resistant manganese steel | |
| 3 | Tank thickness | 6mm | |
| 4 | Blade material | Q355B wear-resistant manganese steel | |
| 5 | Blade thickness | 4mm | |
| 6 | Radiator | 24L | |
| 7 | Pump Motor | Heithecker110-110 | |
| 8 | Reducer | PMP7.5 | |
| External dimensions | Length, width and height 9800*2550*4000(mm) | ||
| Weight of the whole machine | 11~12T | ||
MAIN WORKING PROCESS
Load cement, sand and gravel and other raw materials into the mixing tank.
Start the diesel engine to drive the mixing tank to rotate.
The mixing blades mix the raw materials thoroughly.
After mixing, the concrete can be unloaded by turning the tank body.
In general, the diesel engine mixing tank is a simple and practical concrete mixing equipment suitable for small and medium-sized projects, with the advantages of flexible use and low cost. However, regular maintenance is also required to ensure long-term stable operation of the equipment.
Before sales
Serve as a good consultant and assistant to customers, so that every investment of users can get rich returns.
1.Selection of equipment models;
2.Design and manufacture products according to the special requirements of customers.
3.Train technical personnel for customers.
During sales
Respect customers; give customers a sense of peace of mind, a sense of ease, and a sense of surprise; strive to improve the overall value of customers.
1.Acceptance of products.
2.The company sends engineering and technical personnel to the user’s site for free to plan the site, design processes and plans for the user.
After sales
Free assignment of special after-sales service personnel to the site to guide customers to install and debug.
1.Equipment installation and debugging.
2.On-site training of operators.
3.After the installation of the complete set of equipment, 1-2 full-time technicians will be left to assist customers in on-site production for free for 1 month until the user is satisfied.
4.The equipment has a warranty period of one year, and free replacement is available within one year except for wearing parts. If there is any problem with the motor or reducer within one year, you can get a free replacement with just one phone call.
5.If you have any problem during use, you can contact the manufacturer at any time. If the problem cannot be solved over the phone, we will send professional technicians to provide door-to-door service.
6.Manxing provides accessories service all year round.
FAQ
Are you a manufacturer?

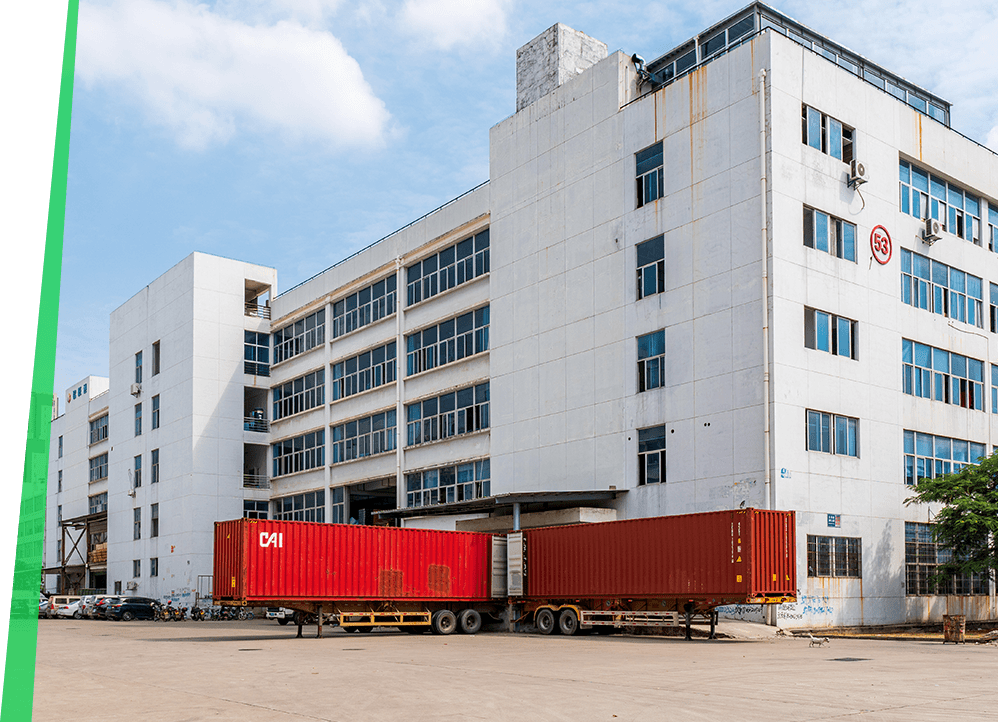

Yes, Manxing factory is 150 thousands squaremeters large, established in 2003 and located in Xingyang, China. We welcome all of our customers to visit our factory.
What do you sell?
Manufacturer specializing in diesel trailer mixing tanks, concrete mixer trucks, concrete mixer trucks, and concrete mixing plants. Customization of various models is supported.
How to pay?
We accept T/T or Alibaba trade insurance.
How to deliver?
We accept EXW, FOB, CFR, CIF or DDU.
Do you have after-sale service?
Yes, we have an one-year insurance policy. If any part of the prodcut is damaged or malfunction during proper operation, we will send you another one for free.
Why choose Manxing?
As a manufacturer we are albe to provide you with best products in lowest price, and we are capable of supplying large quantity within a short time. Our service is also professional and reliable.
